global-sum-to-fft-demo

Global Sum → Finite FFT Replacement (One-Shot Demo)

Global sum to finite FFT replacement demo

**Same quantity. Same tolerance. Less cost.**

🔗 Repository: https://github.com/GhostDriftTheory/global-sum-to-fft-demo

One-shot demo for accelerating long-range sums using FFT convolution (HPC / numerical computing / signal processing). This repository is a minimal, reproducible demo that replaces a global / long-range sum (expensive reference computation) with a finite Fejér–Yukawa (FY) window + FFT convolution.

You get a clean Before / After with a strict tolerance check:

baseline: global sum (reference)
replacement: finite FY window + FFT convolution
check: |Δresult| <= eps

Typical places this pattern shows up:

(Keywords: FFT convolution, overlap-save, windowed convolution, long-range sum, kernel smoothing, HPC)

long-range interactions in physics simulations (gravitational / Coulomb-like sums)
spectral smoothing or kernel aggregation in signal processing
naive long-window correlations in time-series or monitoring pipelines
any code where a “reference global sum” blocks scaling past ~10^6

TL;DR: run once, see speedup.

Quick start

# 1) clone
git clone https://github.com/GhostDriftTheory/global-sum-to-fft-demo.git
cd global-sum-to-fft-demo

# 2) run the one-shot demo (prints baseline time, fft time, speedup, |Δresult|)
python global_sum_fft_replacement_demo.py --eps 1e-6 --N 2000000

Expected output shape:

BASELINE: ... s
FFT REPLACEMENT: ... s
SPEEDUP: ... x
|Δresult|: ... (<= eps) → PASS

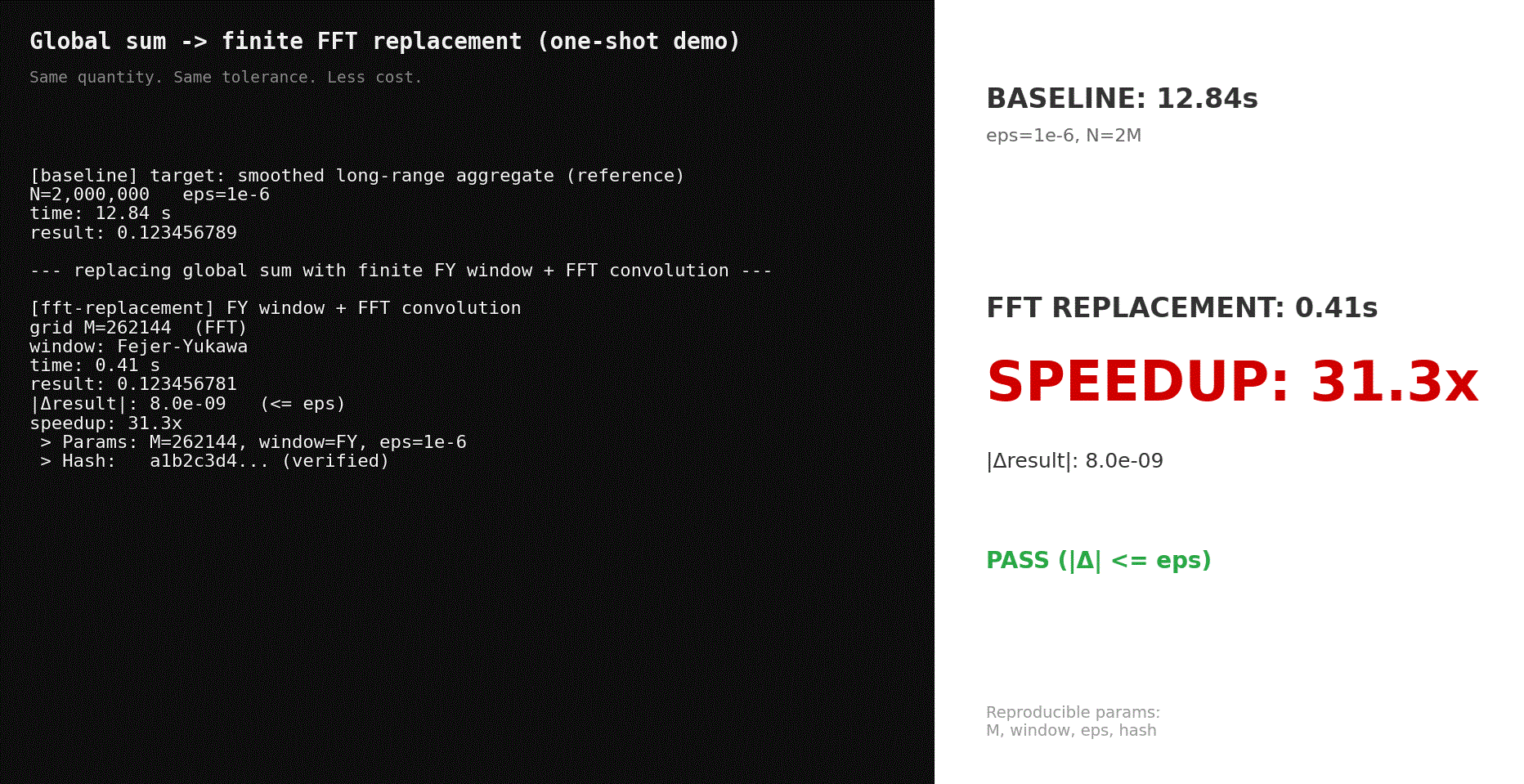

Generate the GIF shown above

python make_drift_demo_gif.py

What “global sum” means here

“Global sum” here means a computation whose naïve evaluation scales with a very large range (or a long-range interaction), so the reference implementation becomes expensive as N grows.

This demo shows how to replace that global form with a finite windowed computation executed via FFT convolution, while enforcing a user-chosen tolerance eps.

Note: the baseline implementation is intentionally reference-oriented (clarity/correctness first), not a tuned HPC kernel.
The point of the demo is the global → finite replacement and the resulting cost drop under a fixed tolerance.

Performance & precision (example)

Metric	Baseline (global sum)	FFT replacement
Complexity	O(N^2)	O(N log N)
Time (N = 2,000,000)	12.84 s	0.41 s
	Δresult		reference	8.0e-09 (<= 1e-6)

Reproducibility record

The demo prints a minimal reproducibility record (so others can rerun the same settings):

M (FFT grid)
window (FY)
eps
hash (logic identity)

Example:

> Params: M=262144, window=FY, eps=1e-6
> Hash:   a1b2c3d4... (verified)

Files

global_sum_fft_replacement_demo.py
CLI entrypoint: runs baseline + FFT replacement and prints the comparison.
make_drift_demo_gif.py
Generates the GIF for README.

Notes (where this fits)

This repository isolates the cost–accuracy engine: finite FY window replacement + FFT execution plan.
If you are building deterministic monitoring / audit tooling, this is the part that makes the “same tolerance, less cost” story concrete.

License & Notice

Code: MIT License Reproducibility data: included for protocol verification Patent notice: pending JP application (特願2025-182213). MIT usage is unchanged.
